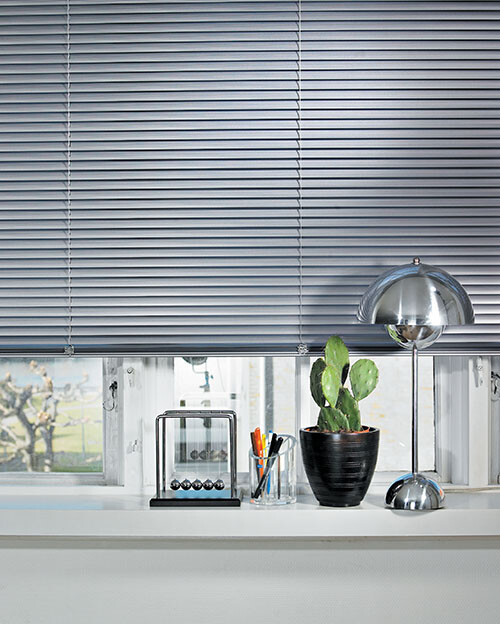

Aluminium Venetian Blinds
Aluminium venetian blinds combine elegant simplicity with practical versatility and function. They bring a high level of minimal and on trend style to most architectural directions. The wide range of metallics and designer colours together with a choice of a slim 25mm, medium 35mm or wide 50mm slat provides designers, architects and decorators a wide range of unique design solutions.
The Meyer Blinds Aluminium Venetian range is available in 25mm, 35mm and 50mm width slats with hardware systems to match. All blinds are made using colour coordinated head and bottom rails and ladder string.
Specifications Overview
Aluminium Venetian Blinds Size Limitations
25mm Aluminium Venetian Blinds | Head rail 25mm wide x 24mm deep with a 25mm wide x 11mm deep bottom rail.
35mm Aluminium Venetian Blinds | Head rail 38mm wide x 28mm deep with a C section bottom rail.
50mm Aluminium Venetian Blinds | Classic head rail 51mm wide x 57mm deep. A more robust head rail.
Maximum Dimensions: 3048mm wide x 3048mm high
Motorisation: Highly suitable.

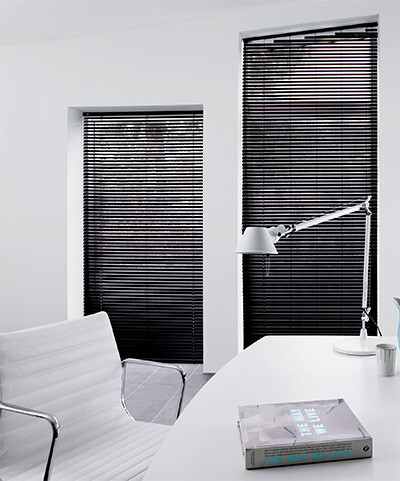

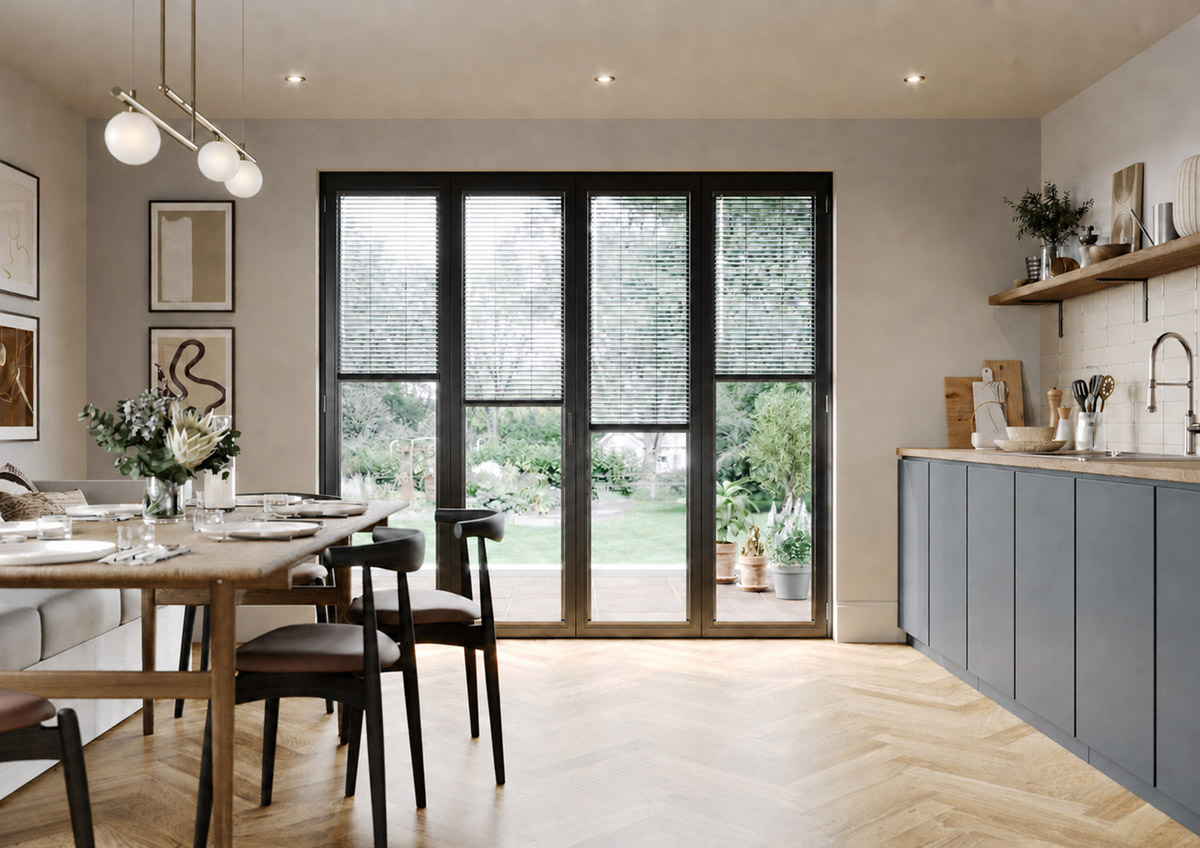

25mm Venetian Blinds.
Standard Specifications:
Available in all 135 colours – is highly functional and in line with interior design trends. The internal rolled edges of the headrail provide strength and durability and help distinguish the round profile of the slats, enhancing the overall appearance of the blind.
System:Â Head rail 25mm wide x 24mm deep with a 25mm wide x 11mm deep bottom rail.
Free-hanging operation with left hand wand tilt and right hand raise and lower.
Colours: Blinds are fully colour co-ordinated where possible.
Fixing: Top/Face fix Installation brackets.
Non-standard specification available at no additional cost:
- Control positions can be altered: All controls on left, all controls on right or reverse controls with right hand wand tilt and left hand raise and lower.
- Double glazing applications. If flexible tilt cable and knob required, POA
- Hold down brackets available.
- A range of fixing brackets available.
Non-Standard Specification available at additional charge:
- Extension Brackets, Minimum Extension – 74mm, Max Extension – 110mm
- Flexible tilt cable and knob for use with double glazed blinds. Colour: Silver
- Side-guidewires
- Mixed slat colour combination. List price plus 20%.
- Cut out

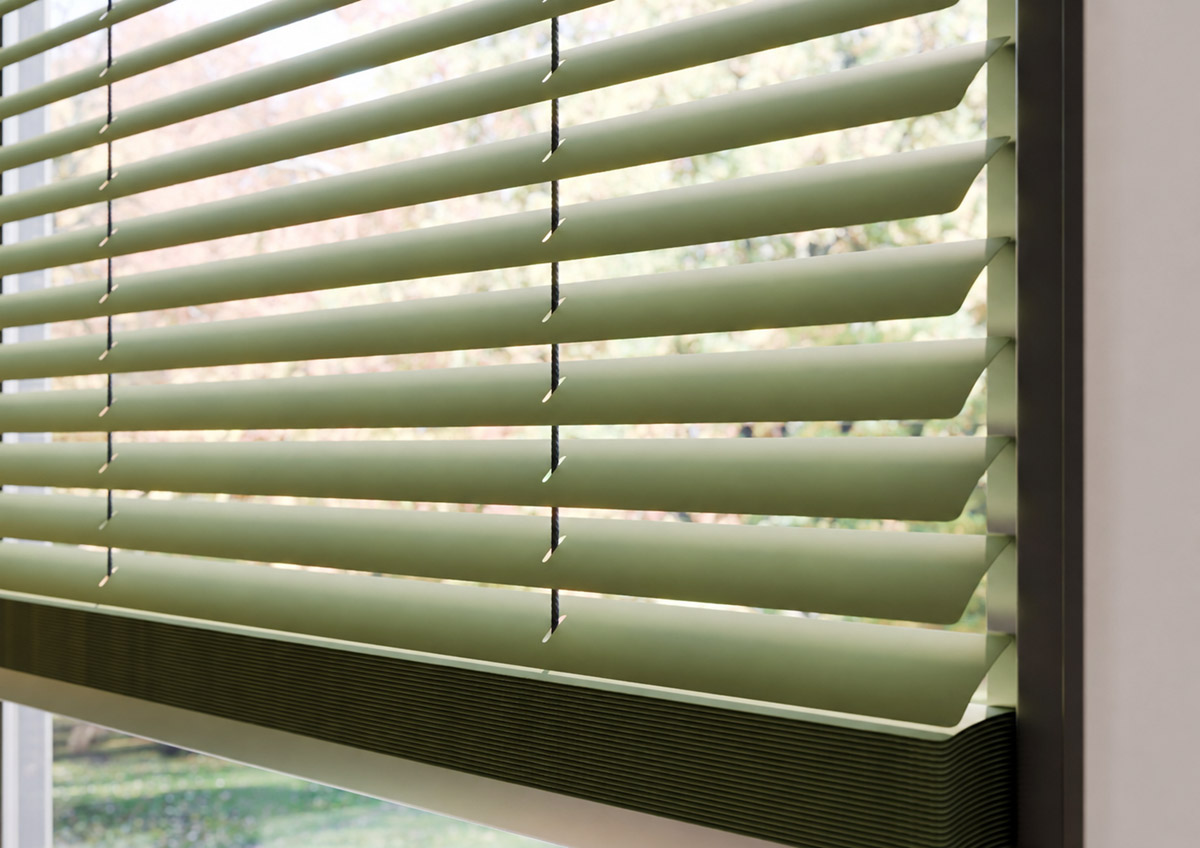

35mm Venetian Blinds.
With 35mm slat available in 8 colours, is designed to cover most window applications and a single unit can cover an opening as large as 3048mm wide x 3048mm drop. All components have been produced with high-quality plastic and steel materials to give you a reliable blind for many years.
System: Head rail 38mm wide x 28mm deep with a C section bottom rail and Wand tilt.
Free-hanging operation with left hand wand tilt and right hand raise and lower.
Colours: Blinds are fully colour co-ordinated where possible.
Fixing: Face fix brackets.
Non-standard specification available at no additional cost:
- Control positions can be altered: All controls on left, all controls on right or reverse controls with right hand wand tilt and left hand raise and lower.
- Cord tilt.
- Hold down brackets.
- A range of fixing brackets.
Non-Standard Specification available at additional charge:
- Face fixing extension brackets
- Side-guidewires
- Mixed slat colour combination. List price plus 20%.
- Cut outs

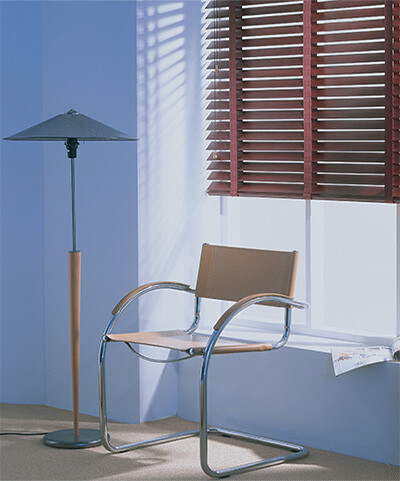

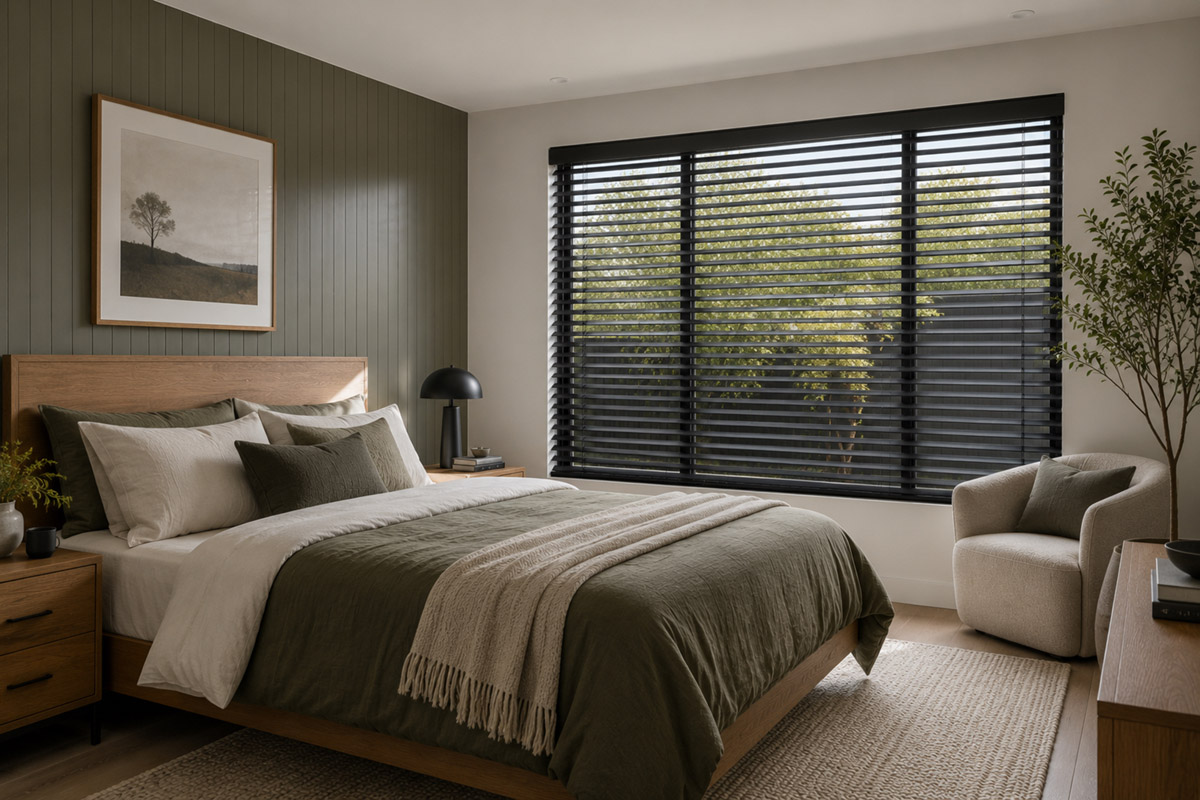

50mm Venetian Blinds.
With 50mm slat available in 11 colours, is designed to cover most window applications and a single unit can cover an opening as large as 3048mm wide x 3048mm drop. All components have been produced with high-quality plastic and steel materials to give you a reliable blind for many years. Utilising the high-quality robust Classic headrail (51mm x 57mm), our 50mm Aluminium venetian is built to last.
System: Classic head rail 51mm wide x 57mm deep. A more robust head rail.
Free-hanging operation with left hand wand tilt and right hand raise and lower.
Colours: Blinds are fully colour co-ordinated where possible.
Operation: Cord tilt and Cord for raising and lowering.
Fixing: Face fix brackets.
Non-standard specification available at no additional cost:
-
Control positions can be altered: All controls on left, all controls on right or reverse controls with right hand wand tilt and left hand raise and lower.
-
Hold down brackets.
Non-Standard Specification available at additional charge:
- Face fixing extension brackets
- Side-guidewires
- Mixed slat colour combination. List price plus 20%.
- Cut outs
Aluminium Venetian Blinds | Showcase

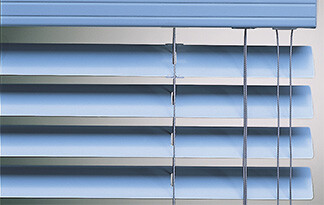

Premium Quality Slats
Meyer Blinds Aluminium Venetian Blind slats are engineered and manufactured in Europe from 0.22mm gauge high grade aluminium to maximise the tensile strength of the slat. They are available in a range of contemporary colours and finishes. The extensive painting process for the Aluminium Venetians delivers several key benefits.
Before undergoing the painting process the raw aluminium is cut into the required width size. They are then washed in hydrochloric acid to remove impurities from the surface of the raw aluminium. The acid is rinsed off the slat which then goes through a tensile stretch oven and roller, the alloy mix is determined by the oven temperature and the tensile rollers used. Depending on the combination, it produces a tensile strength which enables the slat to bend 180 degrees around a 12.5mm radius when crowned.
The next stage is an undercoat paint that etches to the raw aluminium surface, once applied it is baked in the oven. The final paint finish is applied by a roller and it is baked again. Once the slat has cooled it is rewound into coil rolls. The production process gives the Faber Aluminium Venetian flexibility, makes it resistant to kinking and buckling, they won’t chip or flake and the superior adhesion of paint protects against corrosion.wheel gear allows the slats to be opened and closed in only 2.5 turns of the wand, due to the cleverly designed ergonomic gear combined with a 5mm hexagonal tilt shaft.

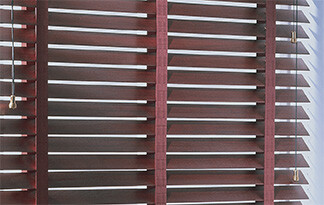

Cord Quality
We offer a wide range of ladder cord to suit a variety of aluminium venetian blind systems. Being vital components for many window covering products, the Meyer Blinds range of ladder and operating cords are designed to function with venetian blind systems by holding slats in place as well as raising and lowering the system.
Made from high grade materials and ensuring superior manufacturing standards, our ladder cords are quality products. Offered in a wide and flexible range of standard colours and designs, they also provide low elongation, high strength, UV stability, and abrasion resistance.
Knitted with pre-shrunk polyester yarn to avoid shrinkage in the finished blind, the yarn uses the best quality pigments for colour consistency and long-lasting colours with a colour fastness of 7-8.
Motorisation
At Meyer Blinds we can motorise our 25mm, 35mm and 50mm Aluminium Venetian blinds.
Can be motorised in both hard wired or battery operated systems. Using our 50mm x 50mm Classic headrail system, we install a Somfy tubular motor for full raise and lower operation.
A tilt only motor is also available for a more basic solution.
25mm | Slat Colours

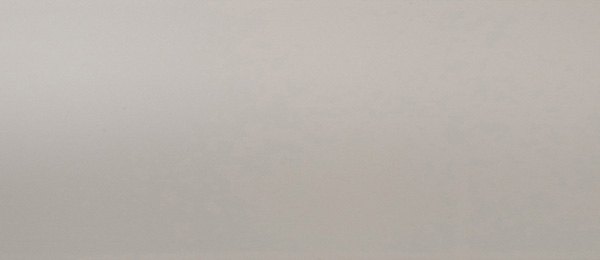

Alabaster
Anchor
Anthracite
Apple Blossom
Aruba
Atoll

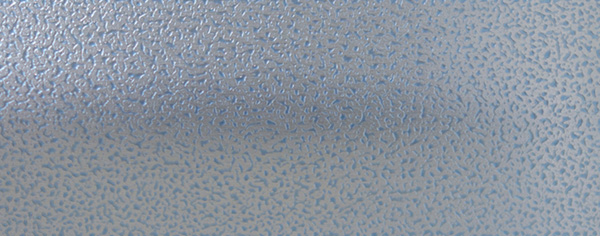

Azure Quartz

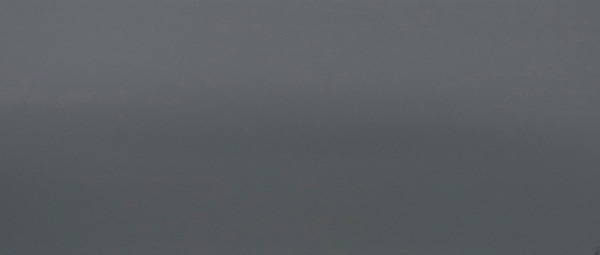

Battleship

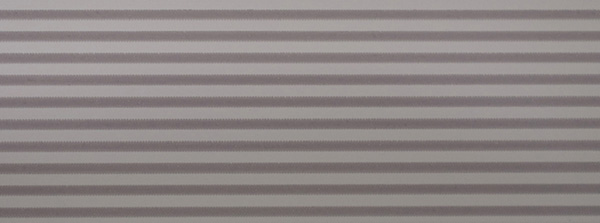

Beachline

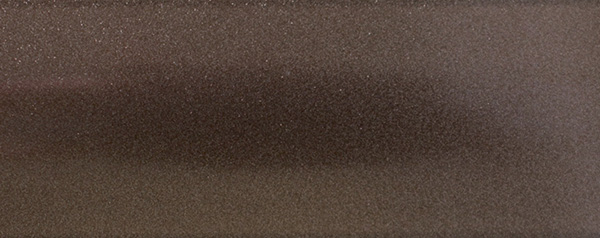

Bronze

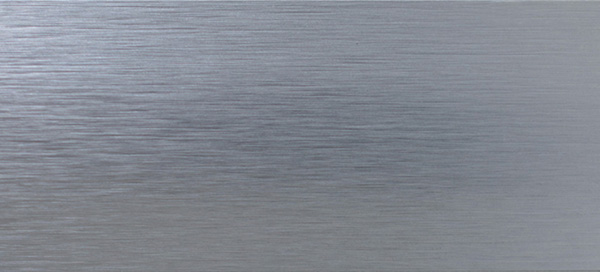

Brushed Chrome

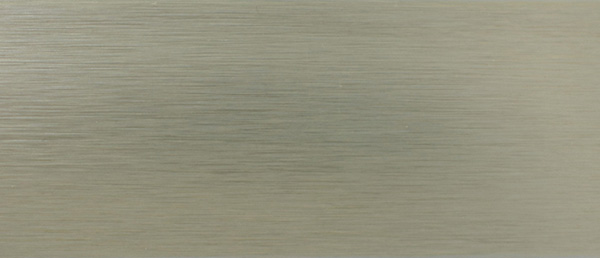

Brushed Gold

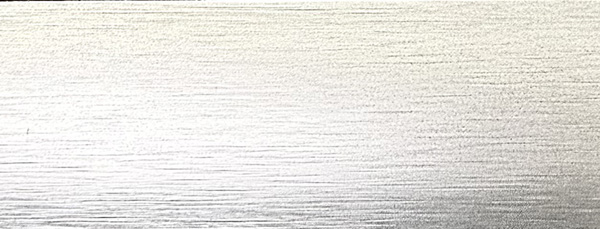

Brushed Silver

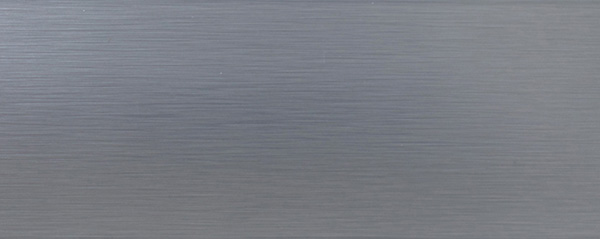

Brushed Steel
Buttercream
Capri

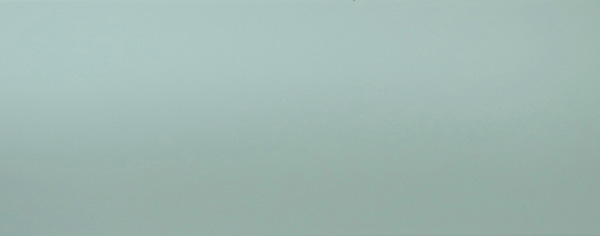

Celadon
Celeste
Chantilly
Charcoal
Chiffon

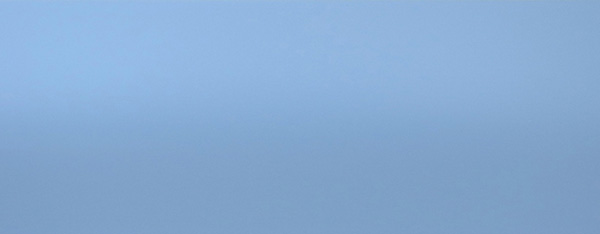

China Blue

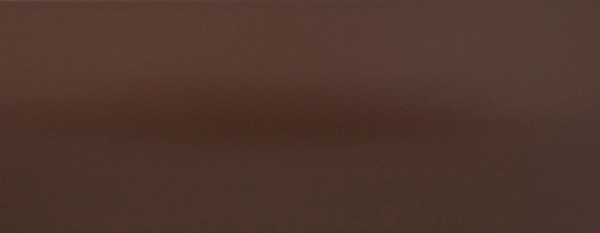

Chocolate

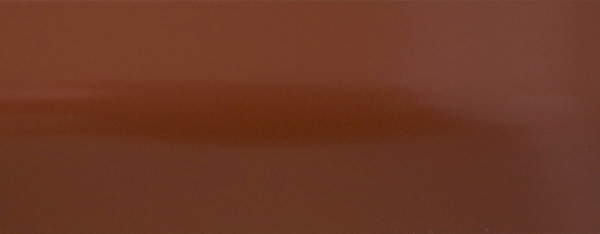

Cinnamon

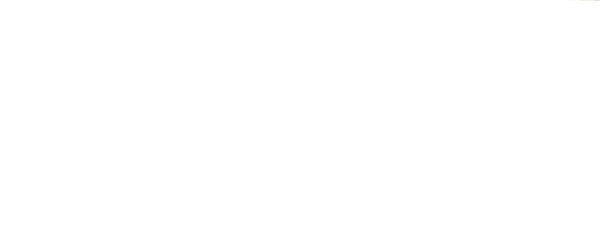

Cloud
Cobalt

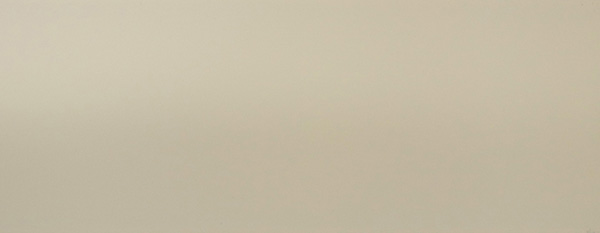

Cornish
Cosmic

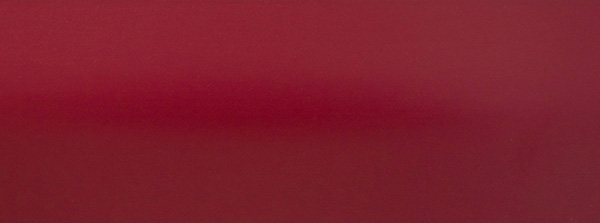

Crimson

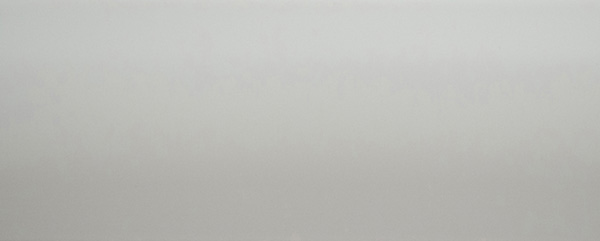

Crystal

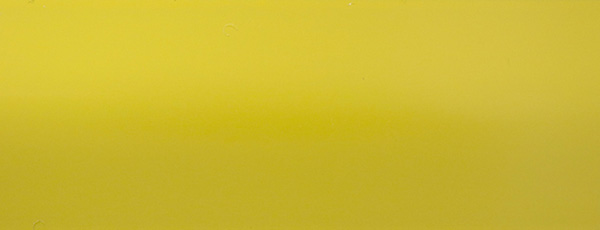

Daffodil
Damson
Dazzle

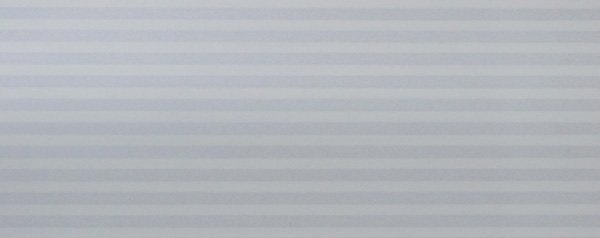

Dreamline
Dusk
Ecru

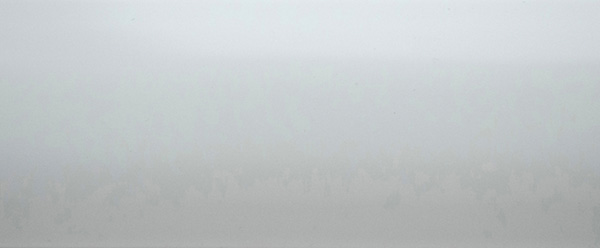

Essence
Fineline Cotton Oak
Fineline Grey Ash

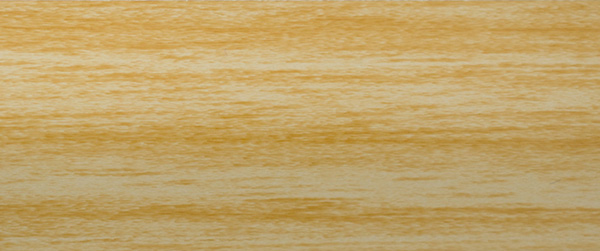

Fineline Pine

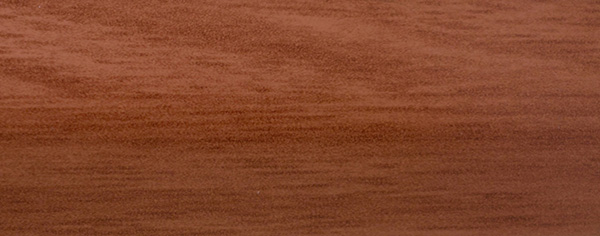

Fineline Red Mahogany
Fineline Red Oak (1)

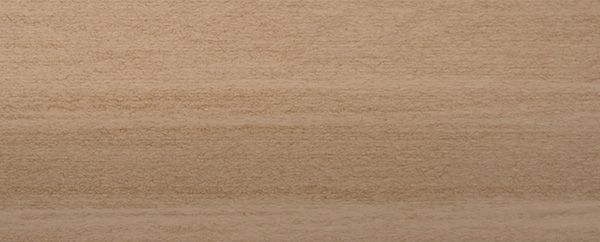

Fineline Red Oak
Fineline Rosewood
Fineline Teak
Fineline Walnut
Fineline Yellow Birch

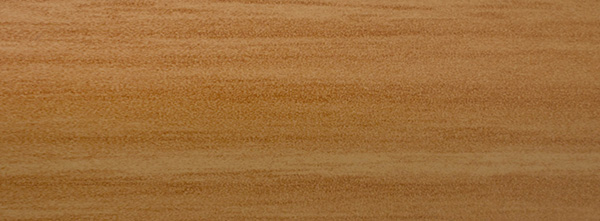

Fineline Yew
Flamingo
Flare
Flax

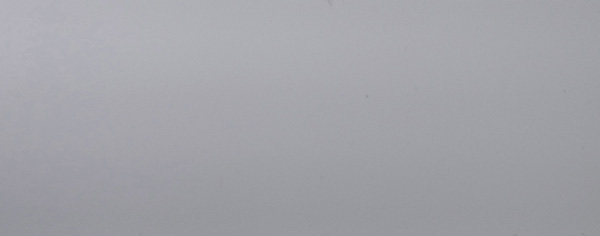

Fog
Forest
Fossil
French Blue

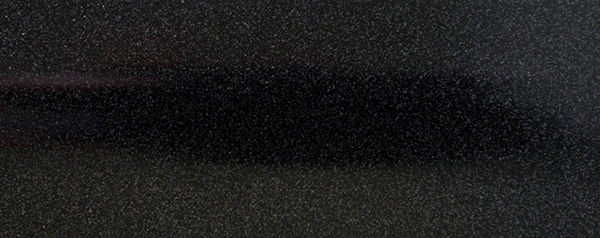

Galaxy

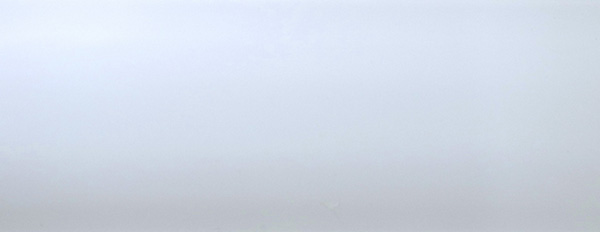

Glacier
Glimmer

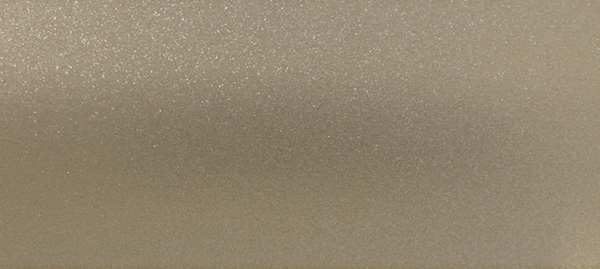

Golddust

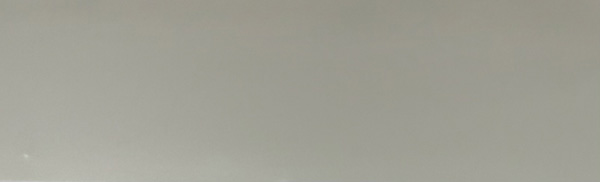

Haze
Hickory

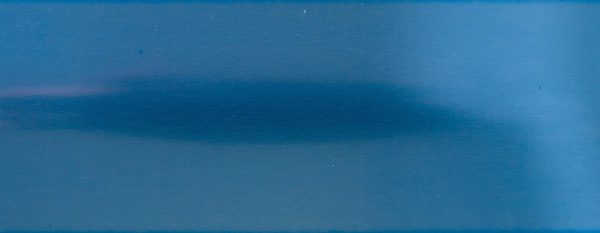

Ice Blue
Jade

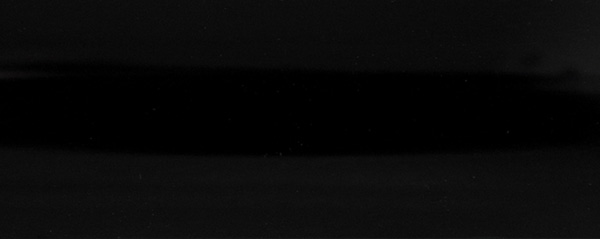

Jet

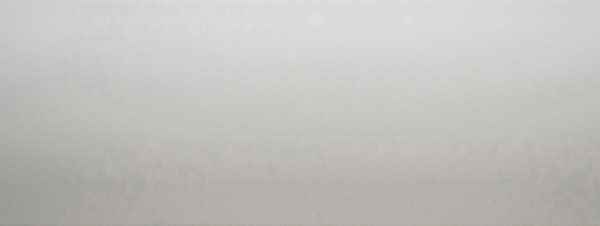

Lace
Lagoon
Lapis

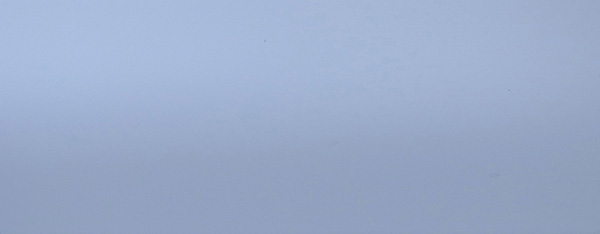

Lavender

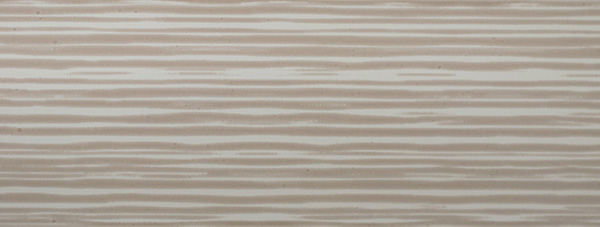

Linea Calico

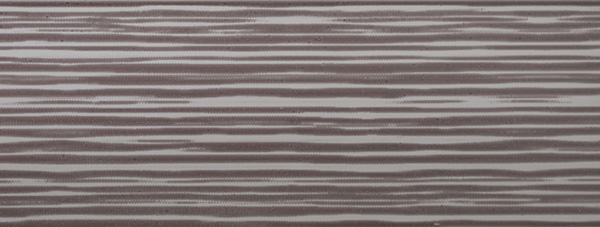

Linea Jute

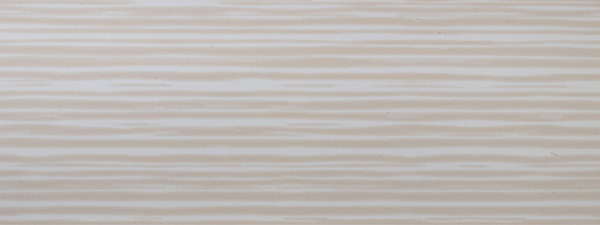

Linea Linen

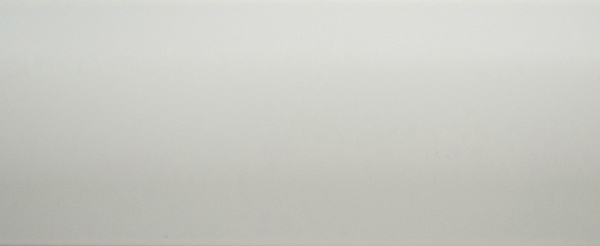

Lunar
Marmalade

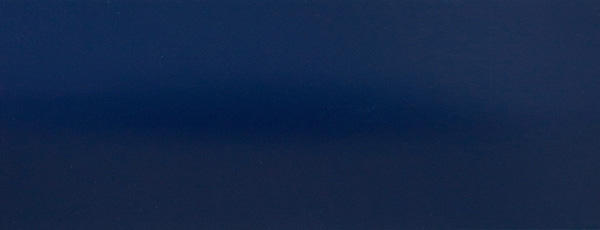

Midnight
Mocha
Monoline

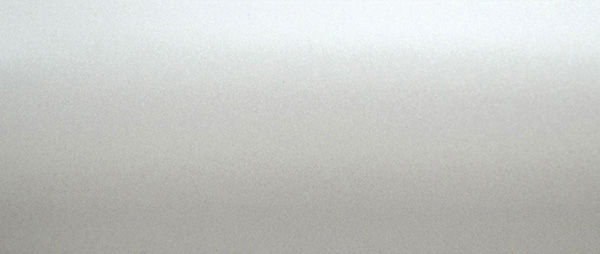

Moonlight

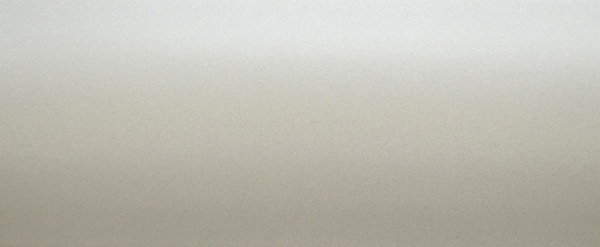

Moonstone

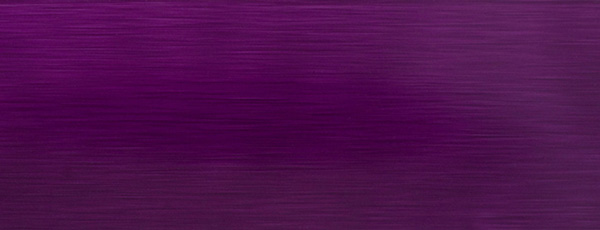

Mulberry
Mushroom

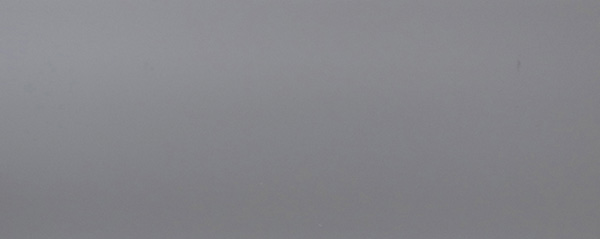

Nimbus

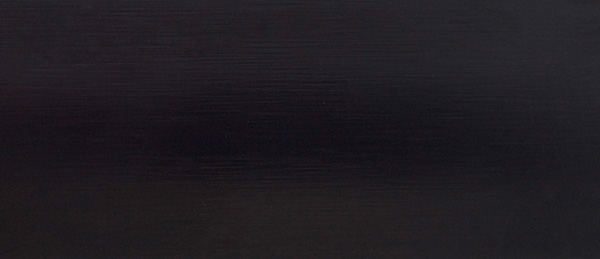

Obsidian

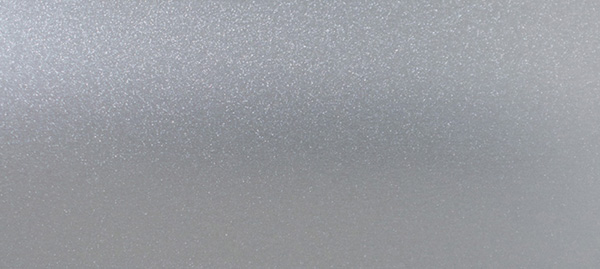

Palladium

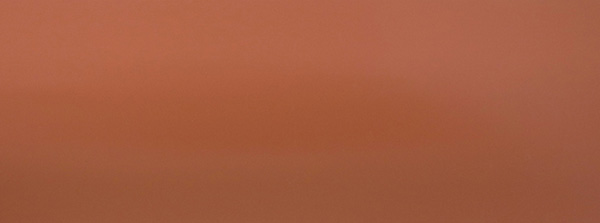

Paprika
Parchment

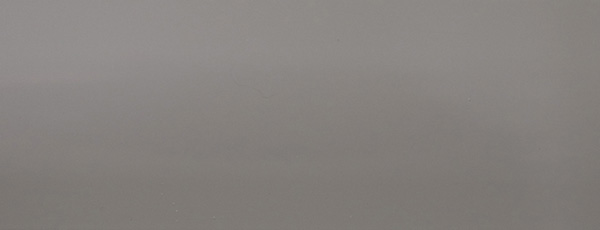

Pebble

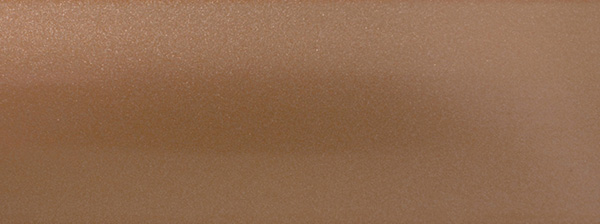

Penny
Peony

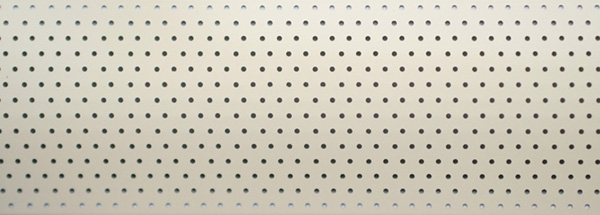

Perfa Eggshell

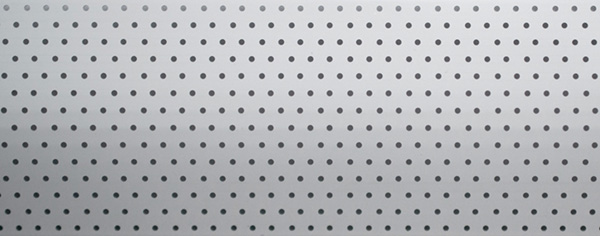

Perfa Ice White

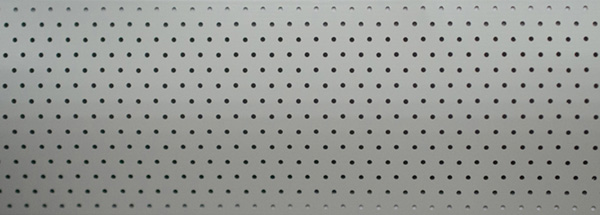

Perfa Mist

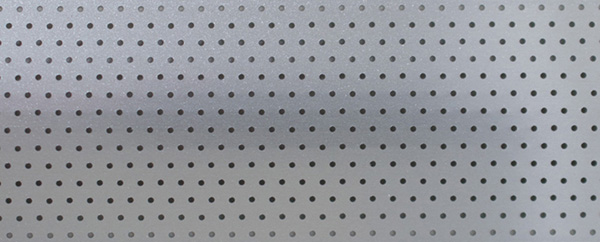

Perfa Platinum
Perfa Pure Black

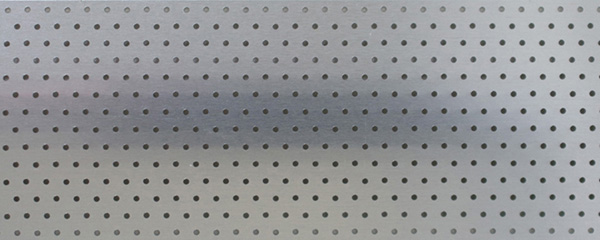

Perfa Sterling

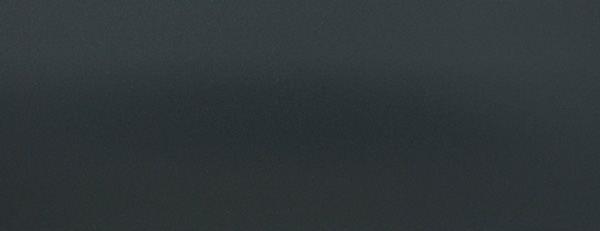

Phantom

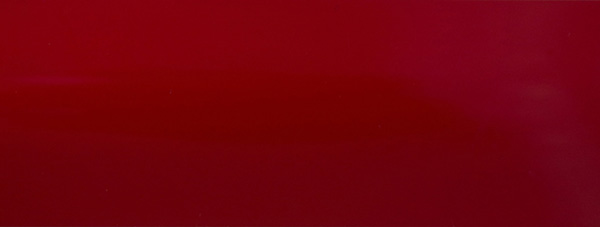

Pillar Box
Platinum
Polar
Pumpkin

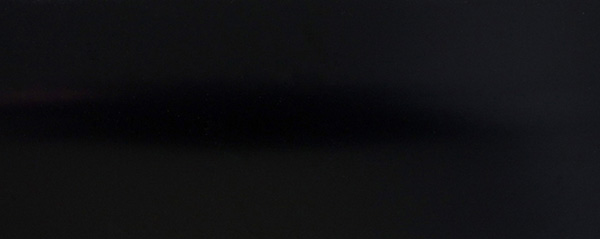

Pure Black

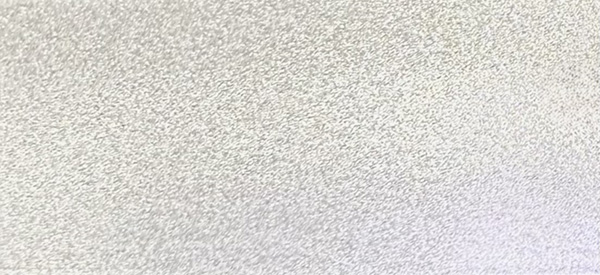

Radiance

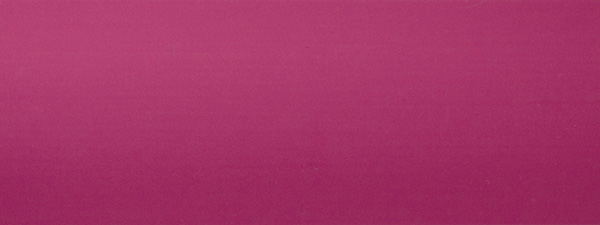

Raspberry

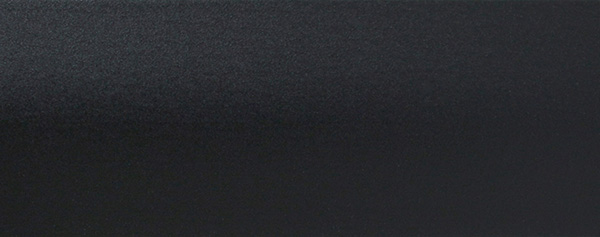

Raven
Rose Quartz
Ruby Slipper

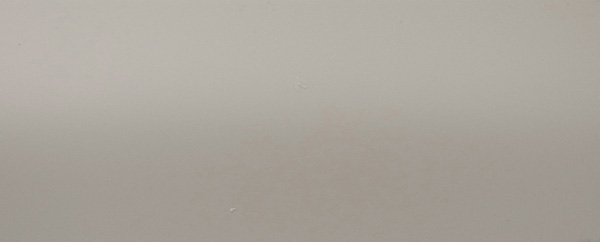

Sand

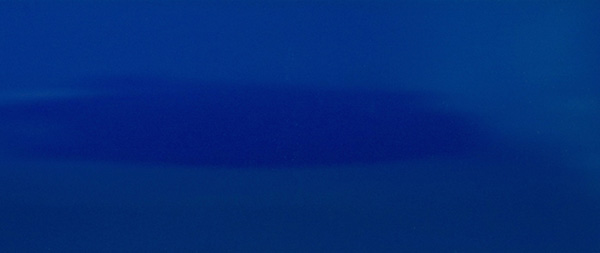

Sapphire

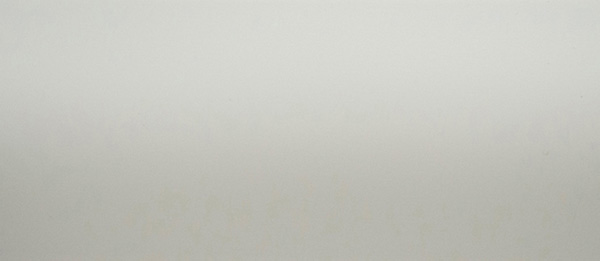

Satin

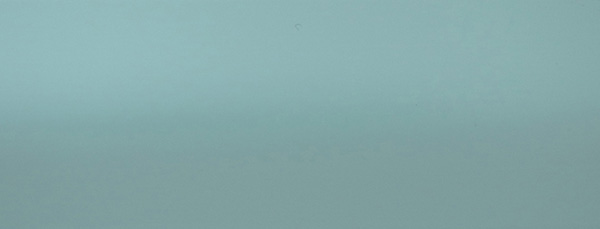

Seafoam
Shale Grey
Silverline

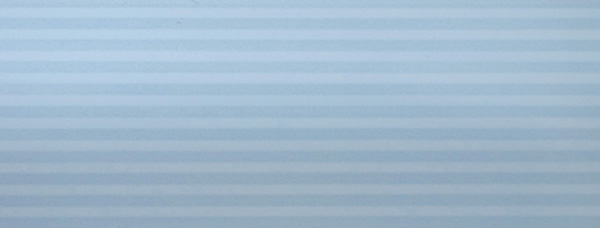

Skyline

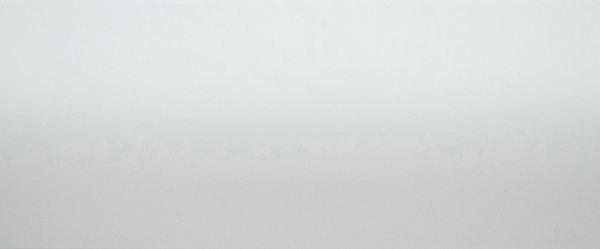

Snow

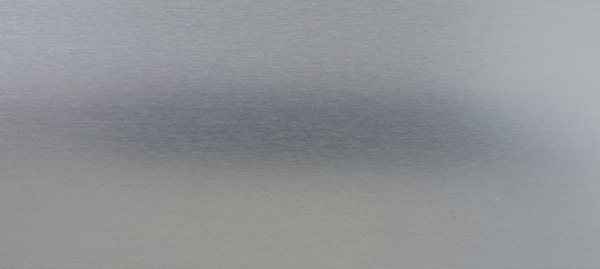

Starshine

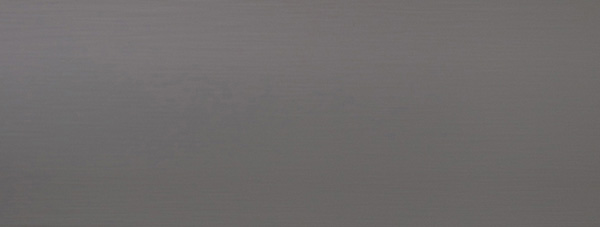

Stone Grey
Storm

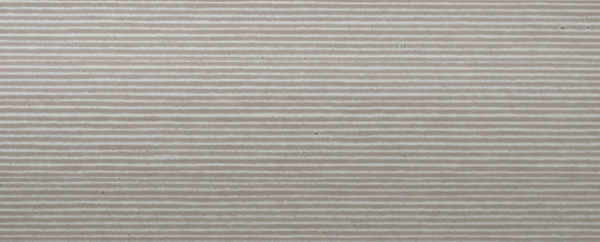

Stria Bamboo

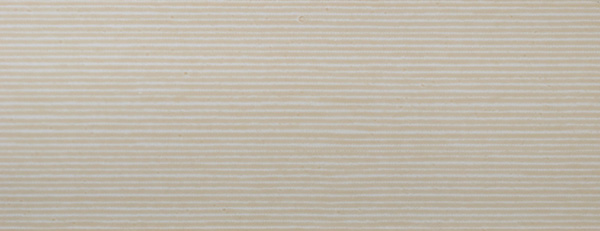

Stria Natural

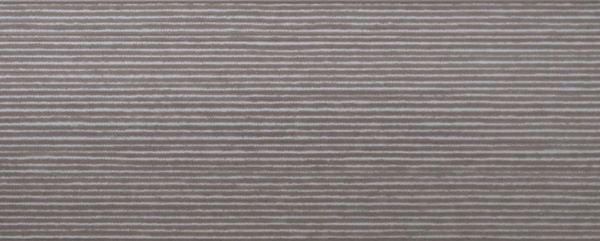

Stria Taupe

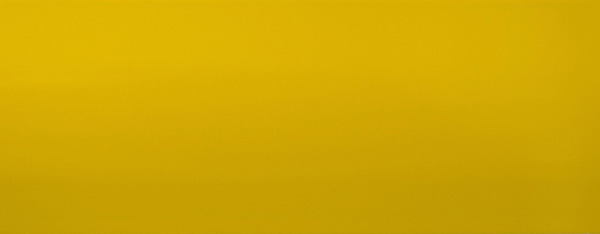

Sunbeam
Sunline

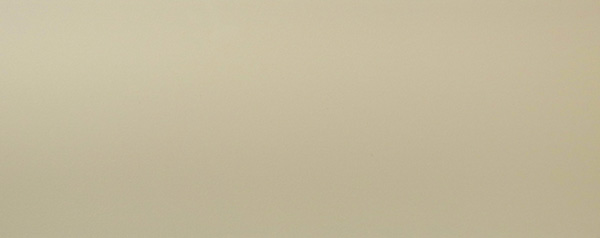

Timeless

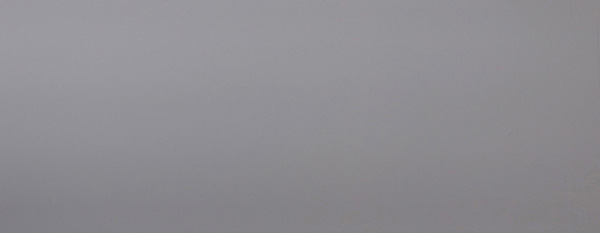

Truffle

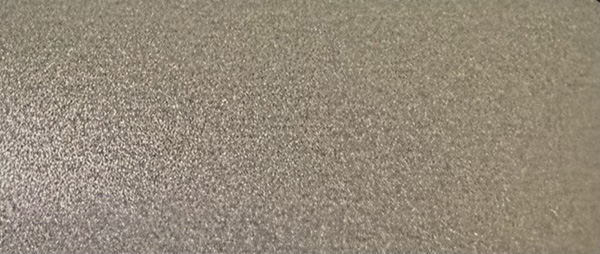

Twighlight
Twine

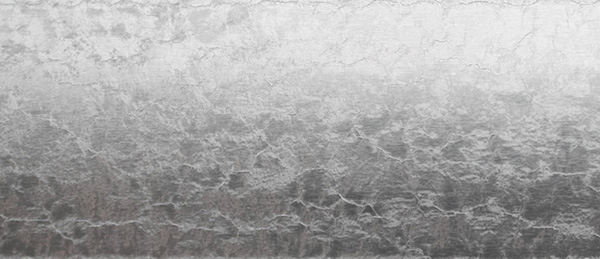

Urban Galena
Urban Onyx
Urban Slate

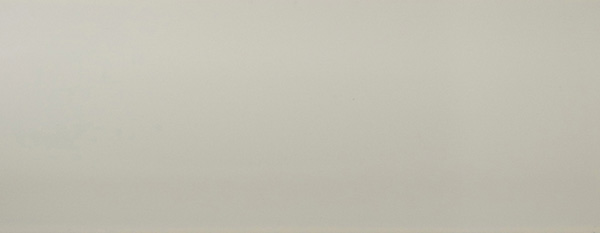

Vanilla
Veil Birch

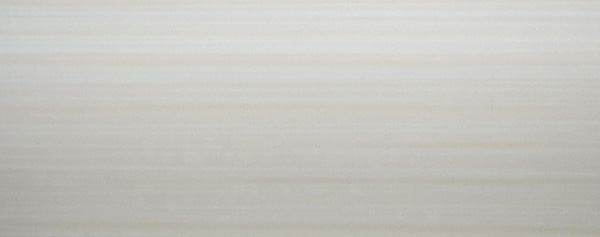

Veil Driftwood
Veil Pecan

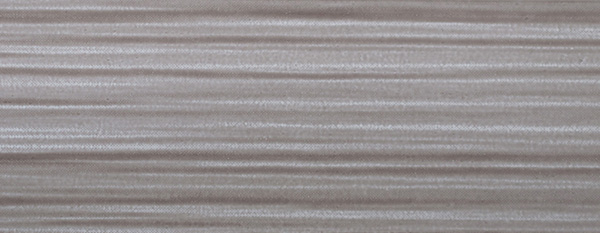

Veil Walnut

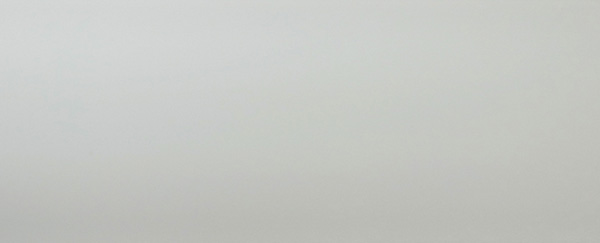

Whisper

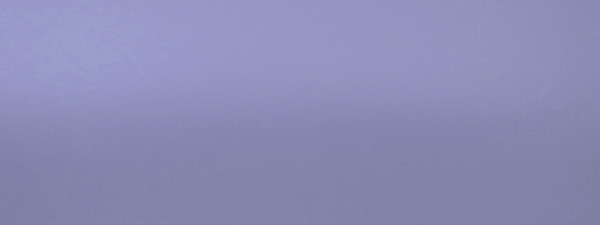

Wisteria

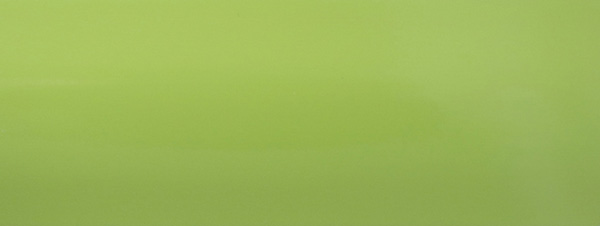

Zest
35mm | Slat Colours
Alabaster
Cloud
Essence
Platinum
Polar
Pure Black
Radiance
Snow
50mm | Slat Colours
Alabaster
Cloud
Essence
Haze
Perfa Platinum
Platinum
Polar
Pure Black
Radiance
Snow
Twighlight
Downloads

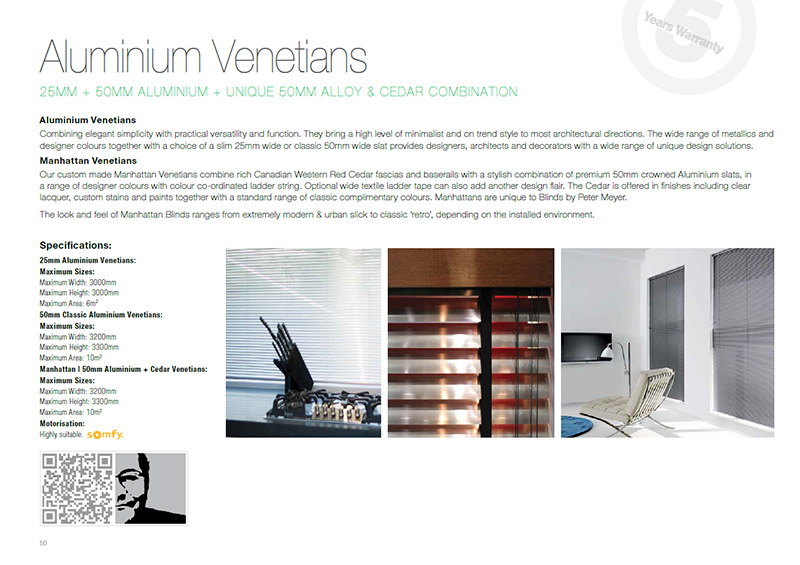

Complete Meyer Blinds Brochure + Aluminium Venetians Brochure
